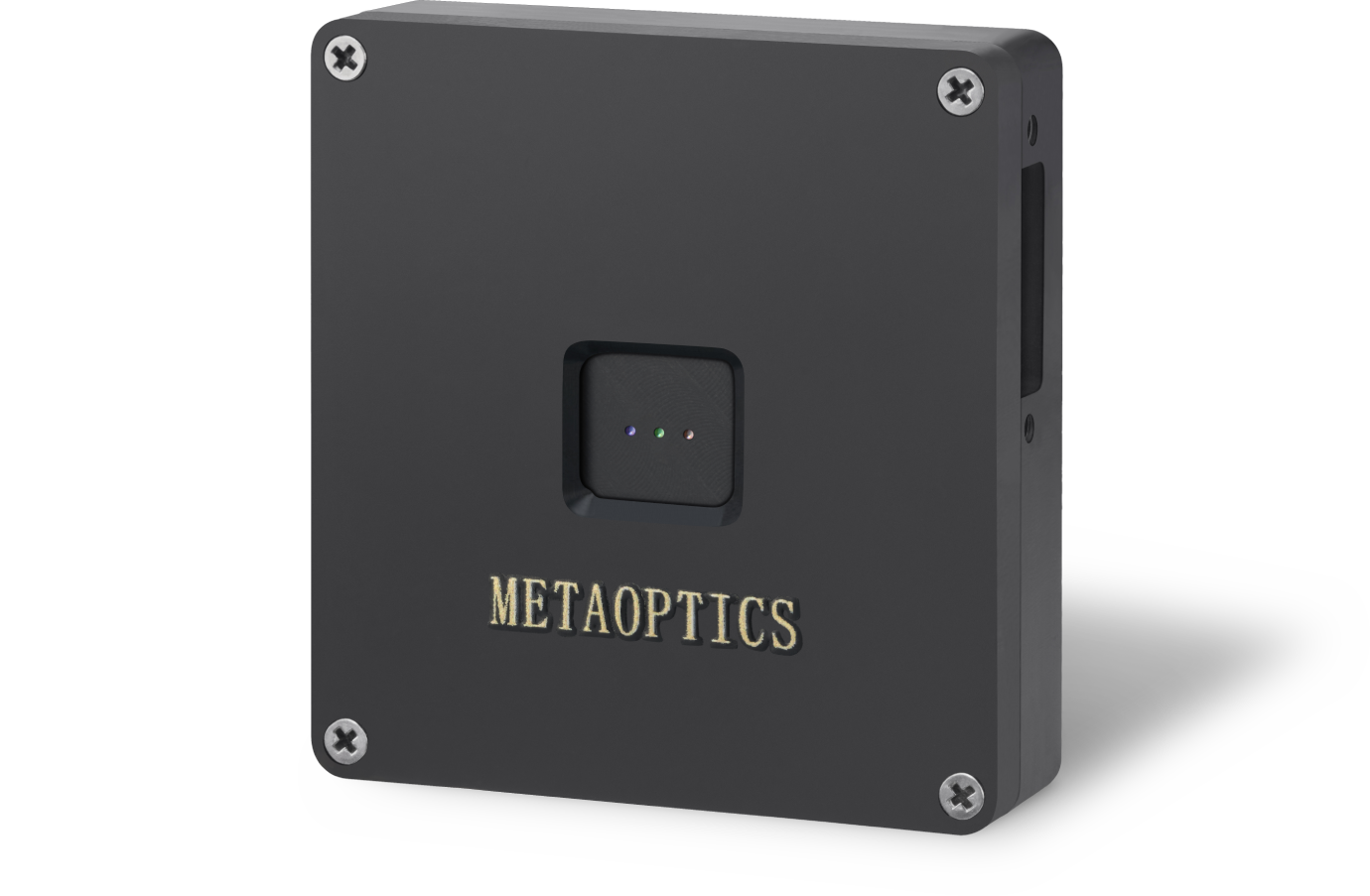

IoT Rectangular Metalens Color Camera
Leading Edge Single Layer Meta Lens Color Camera
Leading edge camera to capture a color image using meta lens. 12'' Glass Wafer DUV Immersion Photolithography Manufacturing Process. Customized for color imaging or non-contact fingerprint sensing. Inclusive of advanced software with AI image enhancement functions. Camera assembly process is tunable to fit applications.
Specifications
Expand/Collapse All
Mechanic

mechanical Dimensions

  • thickness: 10mm
  • length: 47mm
  • width: 44mm
Camera

camera Specifications

  • focal Length: 2.46 mm
  • field Of View: 96° x 26°
  • sensor Type: Monochrome CMOS
  • sensor Peak Quantum Efficiency: 65% @ 535 nm
  • sensor Pixel Resolution: 1.6 MP
  • active Pixels: 1440 x 1080
  • pixel Size: 3.45 um X 3.45 um
  • imaging Area: 4.968 mm x 3.726 mm
  • adc Resolution: 10 bits
  • sensor Shutter Type: Global
  • exposure Time: 0.04 us – 26.843 us
  • usb Power Consumption: 1.17 W
Metalens

metalens Specifications

  • minimum Pillar Diameter: 120 nm
  • height Of Pillars: 650 nm
  • lens Sizes: 5.66 x 5.7 mm
  • target Wavelengths: 450 nm, 540 nm, 635 nm
